Energy Saving CE Certification Microwave Insecticide And
Sterilization Machine
1. Introduction

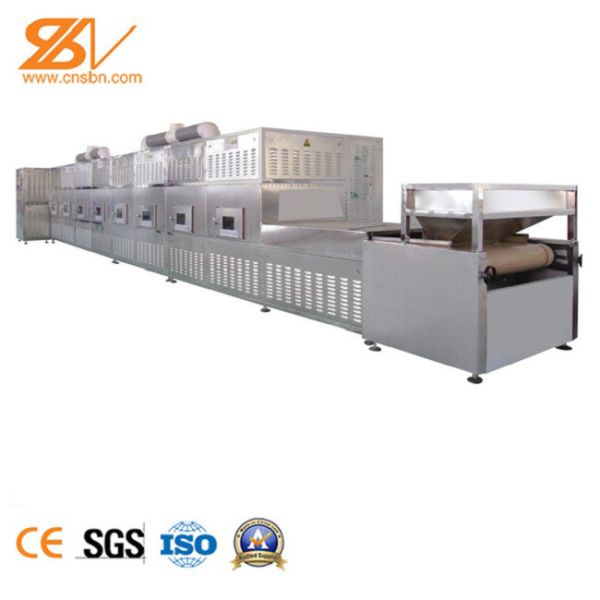

SBN series microwave sterilizing & drying machine is a mulity-pipe
tunnel mode,which can be divided into horizontal Model WMG,vertical
Model LWMG and track-type Model GWMG etc. It adopts our company’s
many patent technologies,such as PLC controlling system,upending
and stirring mechanism,and anti-sliding mechanism etc.Over 90%
surfaces of the macine are mde of stainless steel.Its core
electronic components are imported with original packing.The
machine is mainly composed of electric-heating pre-heated
oven,microwave heater,micorwave suppresser,blower and dehumidifier
monitoring system,mechanical drive mechanism,and pionner PLC
automatic control.Microwave heater is consisted of several units of
heating boxes.The whole machine adopts modular design,resulting in
convenient cleaning,installation,disassembly,inspection and repair.
2. Features
1. Tunnel microwave drying machine is a new type of drying
equipment, high efficiency, low operating cost, it is an efficient
and environmentally friendly energy-saving equipment; especially
for dry food containing both bactericidal preservation. This
equipment has been extensively involved in the pharmaceutical,
food, chemical, building materials and other industries.
2. Drying uniformity, China's first low-power microwave multi-tube
is manufactured by the company.
3. The machine uses a modular design, touch screen as the user
interface, controlled by the PLC, the core electronic components
imported.
4. Microwave transmission mode (patented) control waveguide can
make full use of microwave energy and improve distribution
uniformity microwave.
5. A lack of material protection, and microwave energy into the
material to achieve automatic tracking function on and off.
6. The use of advanced water-cooled water-cooled magnetron and
oil-immersed transformers, microwave source as the main cooling
measures, and easy maintenance, low failure rate.
7. The device is equipped with the United States imported infrared
thermometer, temperature measurement accuracy, stable performance,
enabling precise temperature control by temperature setting, can be
of various materials for automatic on-line adjustment of the size
of the microwave power to meet the microwave energy investment.
Fluctuations of temperature ≤5 ℃.
8. Adoption of setting far-infrared sensing control and advanced
PLC automatic control system can be realized lack of material,
blanking the automatic protection.
3. Equipment Parameters
| Model | Working Frequency (MHz) | Output Power (kw) | Microwave Leakage (MW/cm2) | External Dimension(M)(L×W×H) Adjustable | Productivity of Drying(kg/h) | Productivity of Sterilization(kg/h) |
| SBN-15AB | 2450±50 | 15 | ≤5 | 9.8×1.2×1.6 | 40-75 | 150-180 |
| SBN-20AB | 2450±50 | 20 | ≤5 | 12.4×1.2×1.6 | 50-120 | 200-250 |
| SBN-30AB | 2450±50 | 30 | ≤5 | 14.6×1.2×1.6 | 65-160 | 300-400 |
| SBN-50AB | 2450±50 | 50 | ≤5 | 20.5×1.2×1.6 | 120-200 | 500-600 |
| SBN-50-80AB | 2450±50 | 50-80 | ≤5 | 30×1.2×1.6 | 200-300 | 600-1000 |
| SBN7-80AB-L Vertical. Tunnel Microwave Sterilizing & Drying machine | 2450±50 | 7-80 | ≤5 | 9-30×1.2×1.8 | 40-360 | 60-1000 |
SBN7-80AB Tracked Tunnel Microwave Sterilizing & Drying Machine | 2450±50 | 7-80 | ≤5 | 9-30×1.2×1.8 | 40-360 | 60-1000
|
